Basics

Code

The Point of Sales (PoS) code is primarily writen in Javascript (using OWL starting Odoo 16). As a PoS session should be able to operate without an internet connection, the code was written in order to be executed by the user browser. It was also thought to avoid making request to Odoo’s server, as much as possible and to be resilient to network failures.

Example: Validating an order

actor Cashier Cashier -> odoo !!: validation with order details note right #salmon: internet disconnection (before Odoo server reached) Cashier --> Cashier : storing order in client browser local storage note over Cashier #lime: internet reconection Cashier -> odoo: validation with stored order details odoo -> Cashier: confirmation

Initial Loading

An internet connection is required whenever a PoS session is started. During the session loading, all necessary PoS datas are fetched from the server and store in a Javascript object in the browser memory.

If you open your browser devtools network tab, you will see the server request to fetch the PoS datas. Since Odoo 17, there is one request load_pos_data that fetches all the datas in one go. The response to the request is a JSON object containing all the datas like:

  • products

  • categories

  • customers

  • payment methods

  • taxes

  • pricelist

  • etc.

Browser Local Storage

As mentioned in the previous section, some PoS datas are stored in the browser memory. As this datas are stored in the browser memory. Using another browser or another device will not have access to the datas.

Unpaid Orders

When an order is created in the PoS, it is stored in the browser local storage.

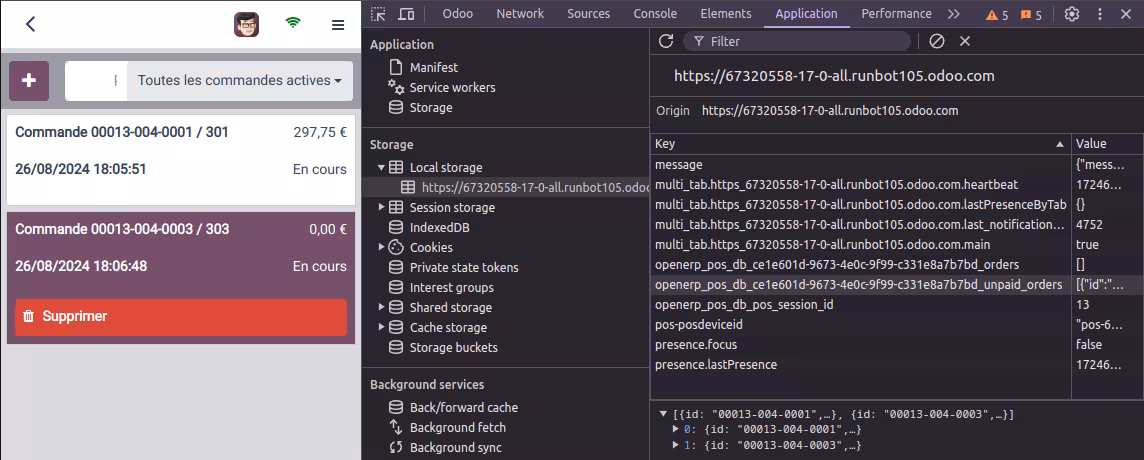

Example of 2 unpaid orders (on a runbot in version 17)

Unpaid Orders

In the bottom right corner, you can see the 2 unpaid orders details in the browser local storage. It contains various informations like the order lines, the customer, the payment method, etc.

It is removed from the cache when the order is validated by the Odoo server.
